✨ Clear Floor Freedom.. APT PL-4.0-2DA Top Beam Lift! ✨

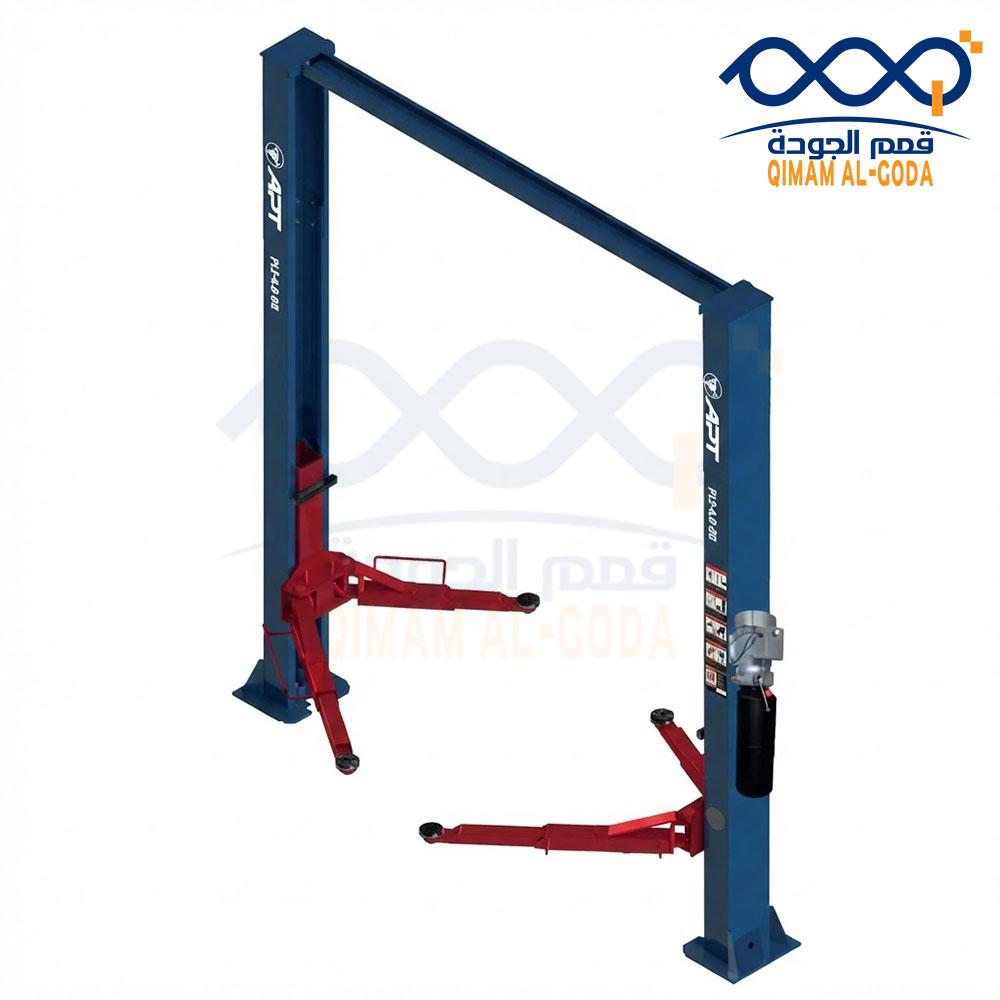

Optimize your workspace with the APT PL-4.0-2DA Clear Floor Two Post Lift. The "Top Beam" design routes the equalization cables and hydraulic hoses overhead, leaving the floor completely obstruction-free. This allows for easy movement of transmission jacks, oil drains, and tool carts underneath the vehicle.
It lifts up to 4 Tons and operates on a standard 220V Single Phase supply. Safety features include a Dual Manual Lock Release system, automatic arm restraints, and an overhead Height Limit Switch to prevent tall vehicles from damaging the roof.

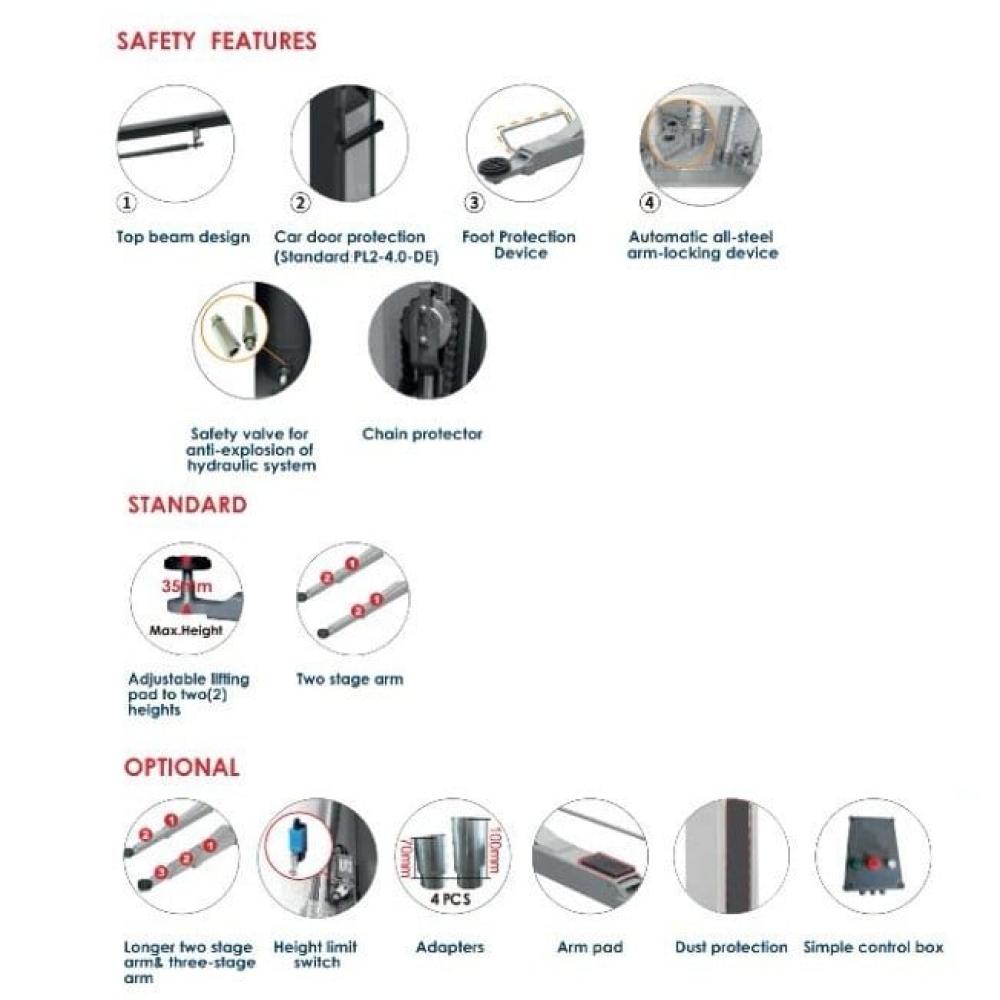

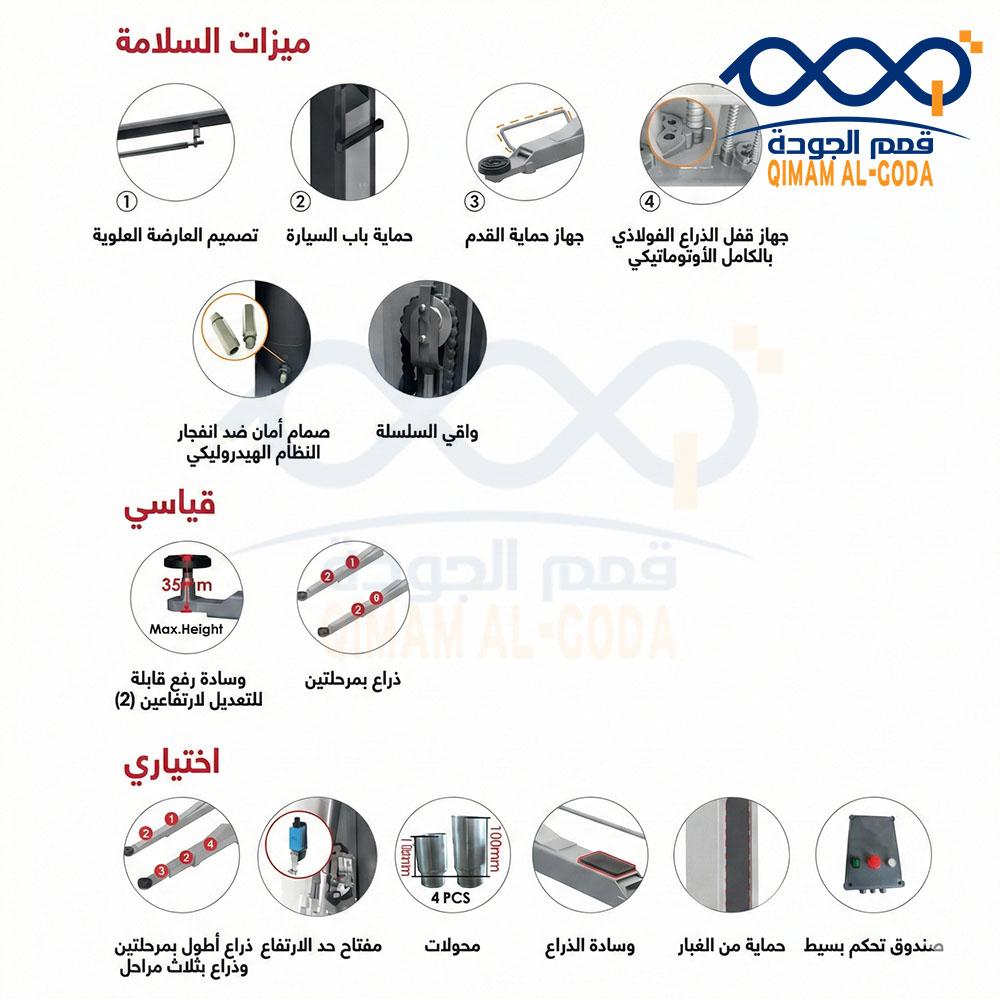

✅ Key Features:
- Clear Floor Design: No floor plate obstruction; hydraulic lines run overhead.
- Safety Limits: Equipped with a height limit switch on the top beam.
- Dual Manual Lock Release: Reliability without the need for air locks.
- Robust Motor: 2.2KW Aluminum motor with iron oil tank.
- Protection: Standard door guards and foot protection devices.

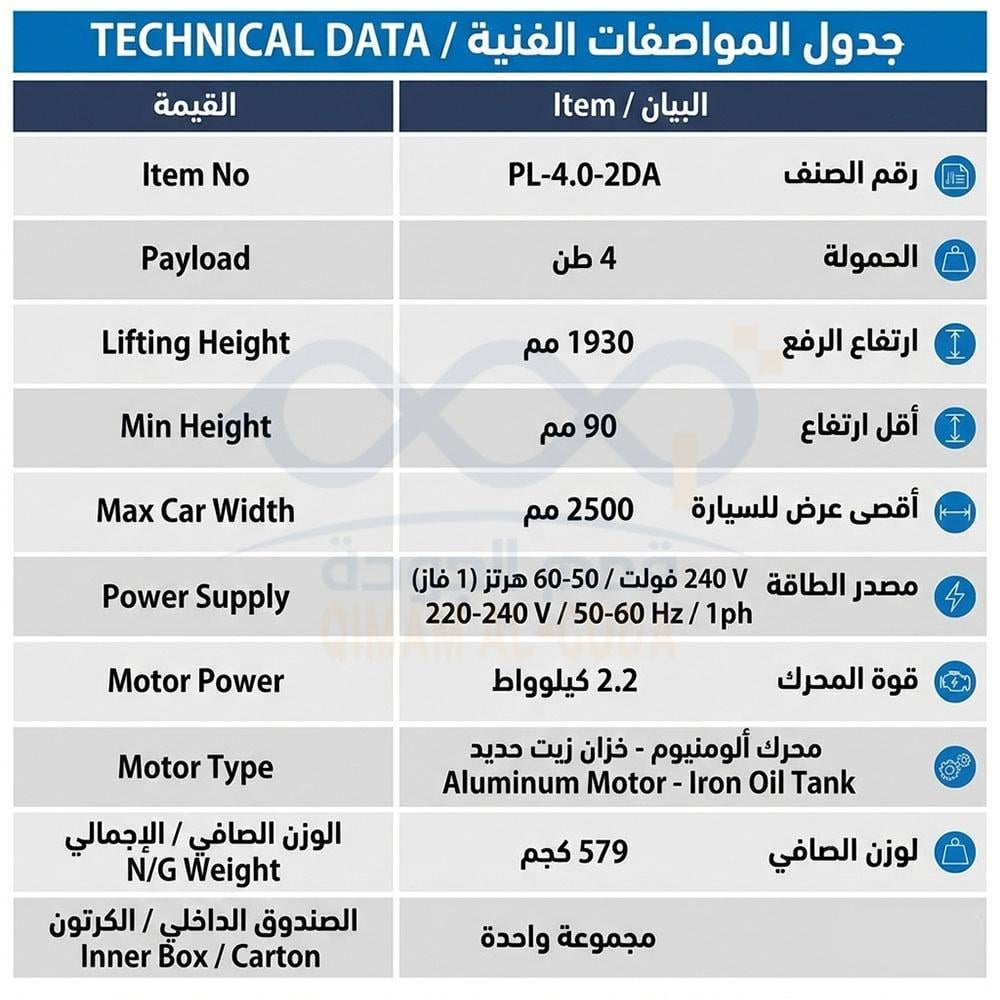

📋 Technical Specifications:
- Brand: APT
- Model: PL-4.0-2DA
- Design: Clear Floor / Top Beam
- Capacity: 4 Ton
- Lifting Height: 1930 mm
- Power Supply: 220-240V / 1ph
- Motor Power: 2.2 KW
- N/G Weight: 579 Kgr
